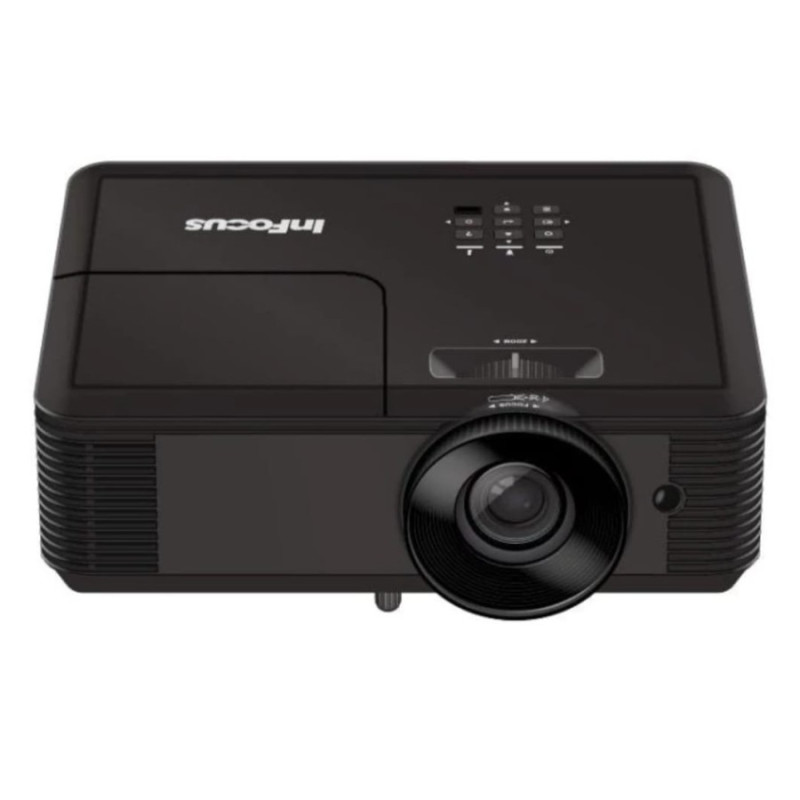

PROYEKTOR INFOCUS IN116AA

DLP / Resolusi WXGA/Brightness 3800 Ansi lumnes/ Aspek ratio 16:10/ contras ratio 30.000 : 1/ Input : Komputer & Video, Hdmi

image :
Projection Technology
Texas Instruments DLP
Panel Size 0.65" DMD
Native Resolution WXGA
Pixels 1280 x 800
Aspect Ratio 16:10
Contrast Ratio  30000:1
Brightness (Lumens) 3800

Light Source
UHP Lamp
Light Source Life Maximum Hours 15000
Maximum Supported Resolution 1920 x 1200
Horizontal Sync. Range (KHz) 31 ~ 97
Vertical Sync. Range (Hz) 56 ~ 85
Uniformity (%) 80
OpticalLens1.1x
Lens Zoom Adjustment
Manual
Optional Lenses -
Image Offset (%) 112.4
Focal Length (mm) 21.85 ~ 24.01
F-Stop 2.41
Vertical Lens shift (%) -
Horizontal Lens shift (%) -

Keystone Adjustment
Manual Vertical Keystone Correction ± 40°
Horizontal Keystone Correction -
Projection Factor 1.54:1 ~ 1.72:1
Projection Distance (Meters/Feet) 1 ~ 10 / 3.2 ~ 32
Optical Zoom 1.1:1
Digital Zoom Demagnification / Magnification 0.8 ~ 2.0x

Focus Adjustment
Manual Connectivity
INPUTS :
Mini D-sub 15-pin (VGA)
Composite Video -
S-Video
HDMI 1.4
USB-B 2.0 -
RJ45 - LAN 10/100/1000 -
3.5 mm Stereo Mini Jack
3.5 mm Stereo Mini Jack with Microphone -

OUTPUTS:
Mini D-sub 15-pin (VGA) -
3.5 mm Stereo Mini Jack
Powered USB-A for Wireless Dongle
3D Sync -

Other
RS232 -
RJ45 HDBaseT -
All Major 3D Formats
USB-A for Service
Micro USB for Service -
Document Reader -
Video Player -
Photo Viewer -
Music Player -
12v Screen Trigger -

POWER :
Power Supply 100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W) 267
Power Consumption Min. (W) 210
Power Consumption Network Standby (W) -
Power Consumption Standby (W) <0.5

GENERAL :
Dimensions (W x H x D) (mm / in) 236 x 313 x 107 / 9.3 x 12.4 x 4
Product Weight (Kilograms/Pounds) 2.6 / 5.7
Fan Noise (dB) 30
Audio (W) 3
Operating Temperature (Celsius/Fahrenheit) 5 ~ 40 / 41 ~ 104
Operating Humidity (%) 10 ~ 85
Max Operating Altitude (meters / feet) 3048 / 10000
Storage Temperature (Celsius/Fahrenheit) -10 ~ 60 / 14 ~ 140
Storage
